Team 3: GVSU Department of Chemistry - Project: Fluorescent Decay Measurement Device

Project Abstract

The fluorescence decay time of a material provides insight into a material’s physical-chemical properties. This project design will allow for the accurate measurement of fluorescence decay time of an aqueous solution of [Ru(bpy)3]2+at varying concentrations. This will be accomplished by placing a [Ru(bpy)3]2+solution in a standard cuvette. The electrons of the[Ru(bpy)3]2+ ions will then be excited by a light pulse producing photons with a wavelength of 450nm. A 650nm optical filter and an avalanche photodiode (APD) will then be used to filter and collect the fluorescing photons. The current out of the ADP will be converted into a voltage waveform using a trans-impedance amplifier. A second stage voltage amplifier will be used to output a voltage waveform with an amplitude large enough to be measured on an oscilloscope.

Team Members

Jacob Cartwright

Richard Critchlow

Andrew Kruse

Hoan Lam

Ethan Lewis

Faculty Advisors

Dr. Karl Brakora

Project Sponsor

Educating students to shape their lives, their professions, and their societies. The university contributes to the enrichment of society through excellent teaching, active scholarship, and public service.

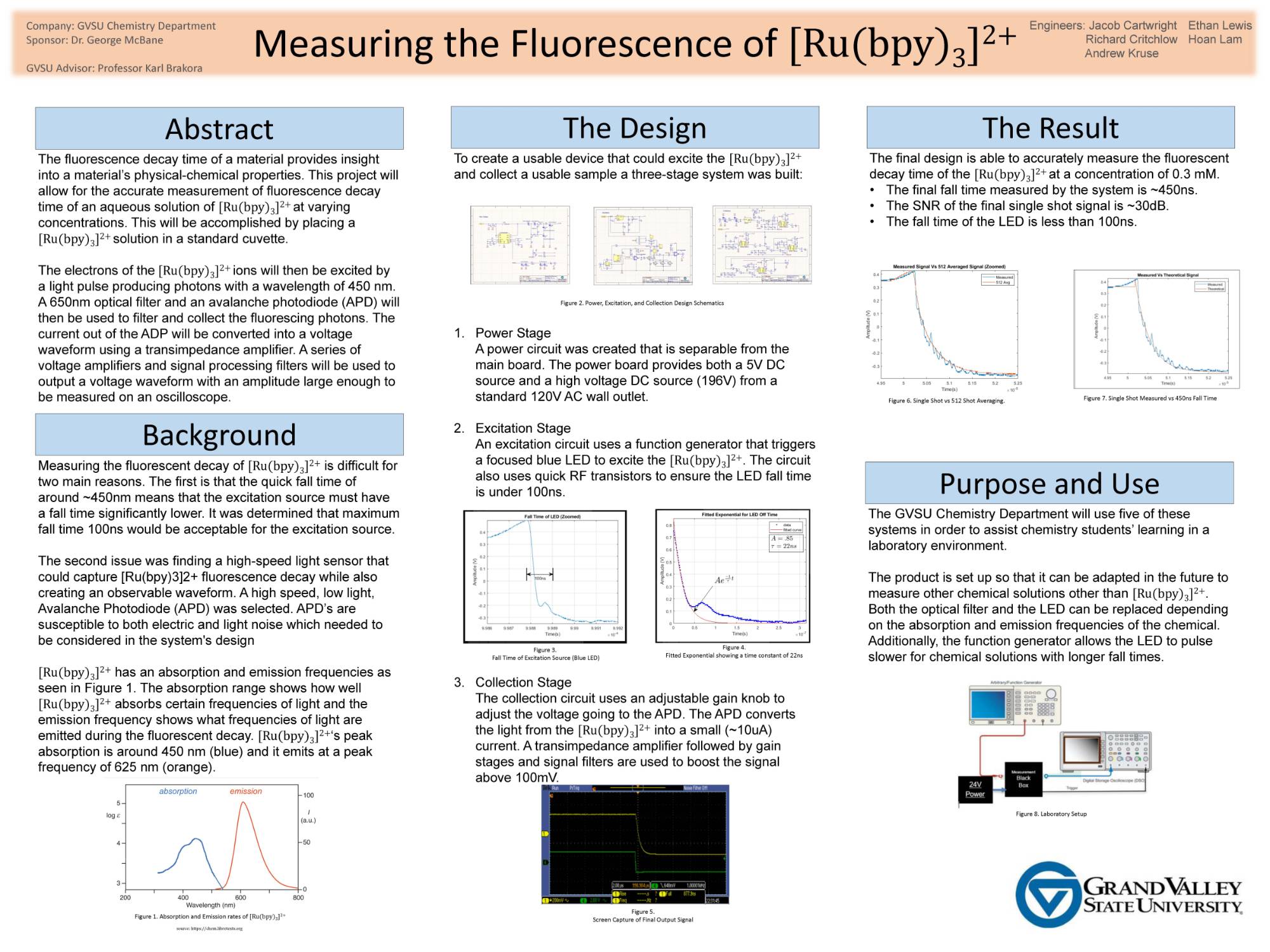

Project Presentation

Click to expand the poster

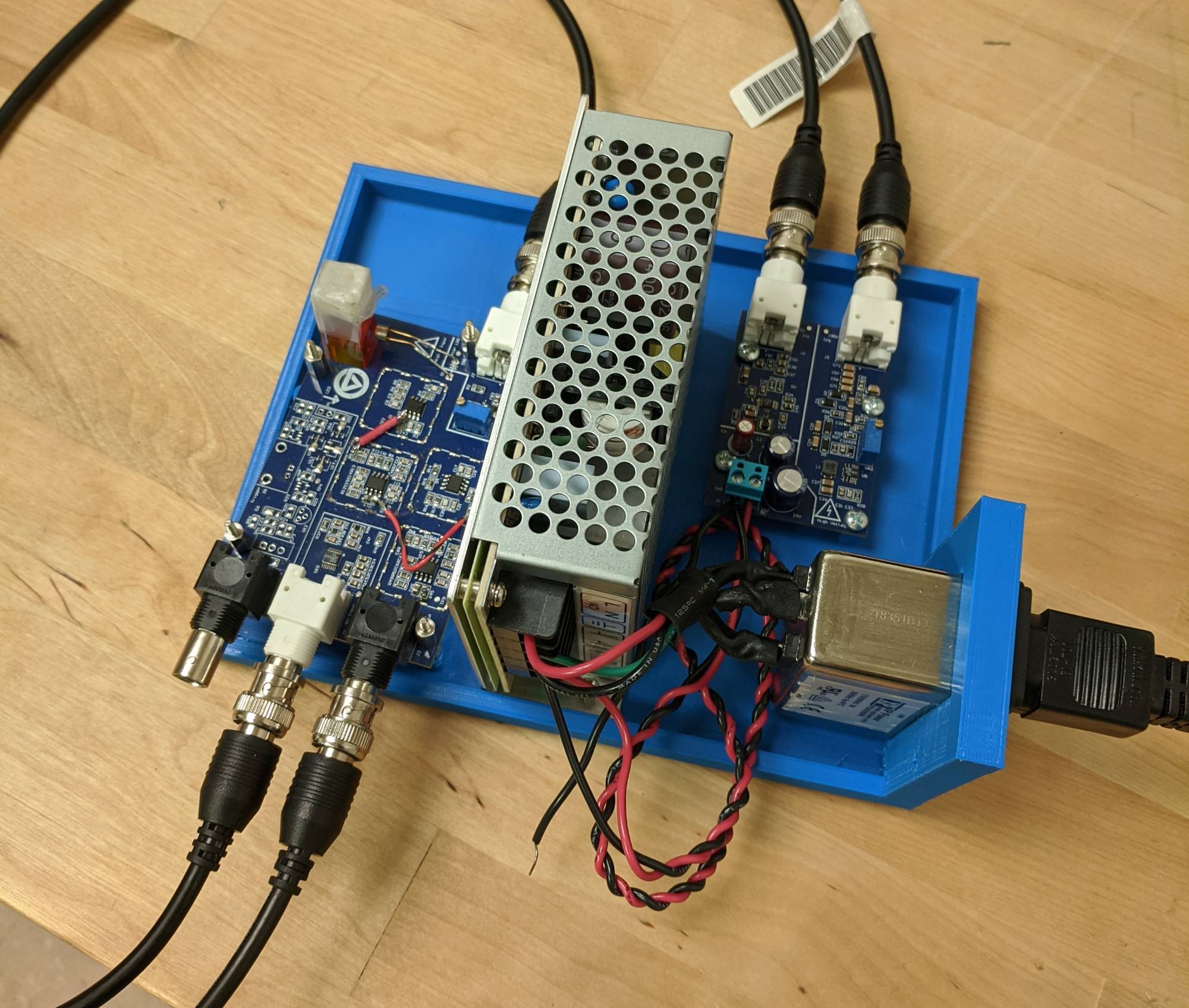

Project image

Project Overview

Project Overview Video

In-Depth Project Overview

In-Depth Project Overview Video
