Thursday Afternoon Session I (1:15 - 2:45 pm)
Crosstalk and Inductive Coupling
- Inductive coupling between circuits

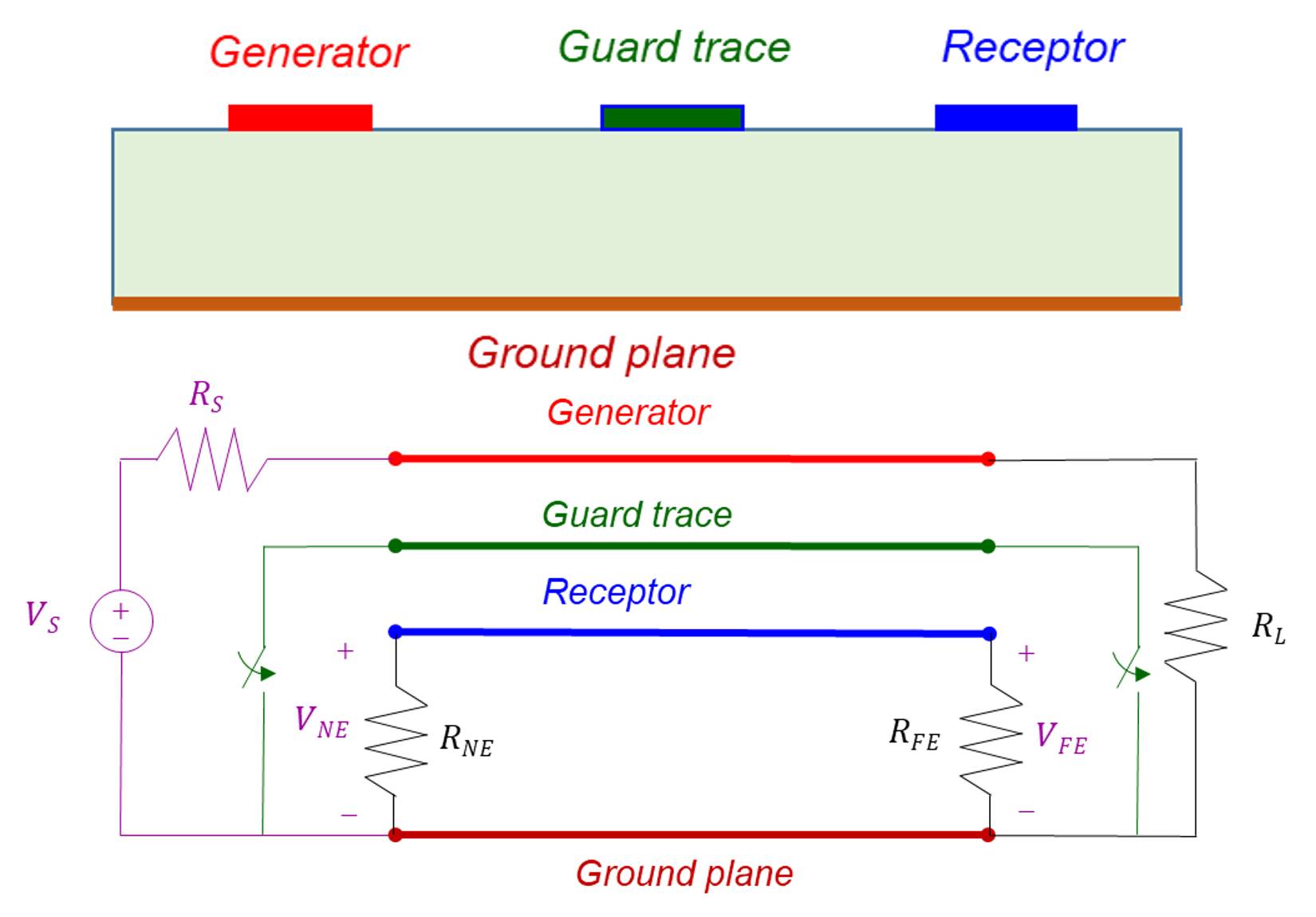

- Impact of the signal parameters, circuit topology, and a guard trace
- Inductive coupling and crosstalk reduction

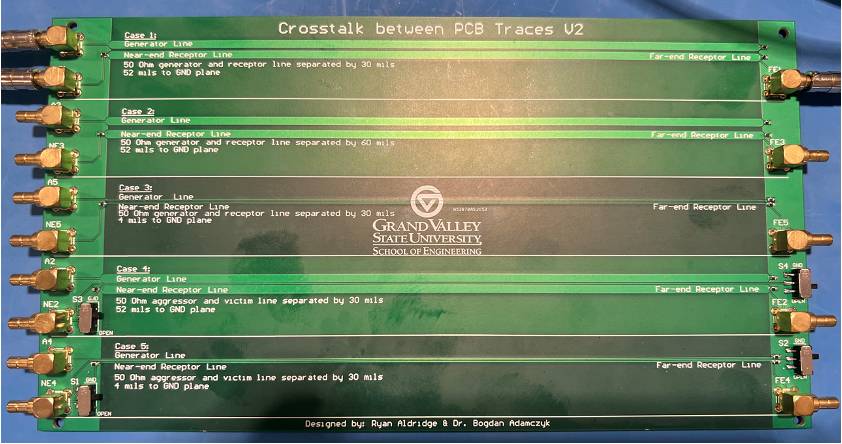

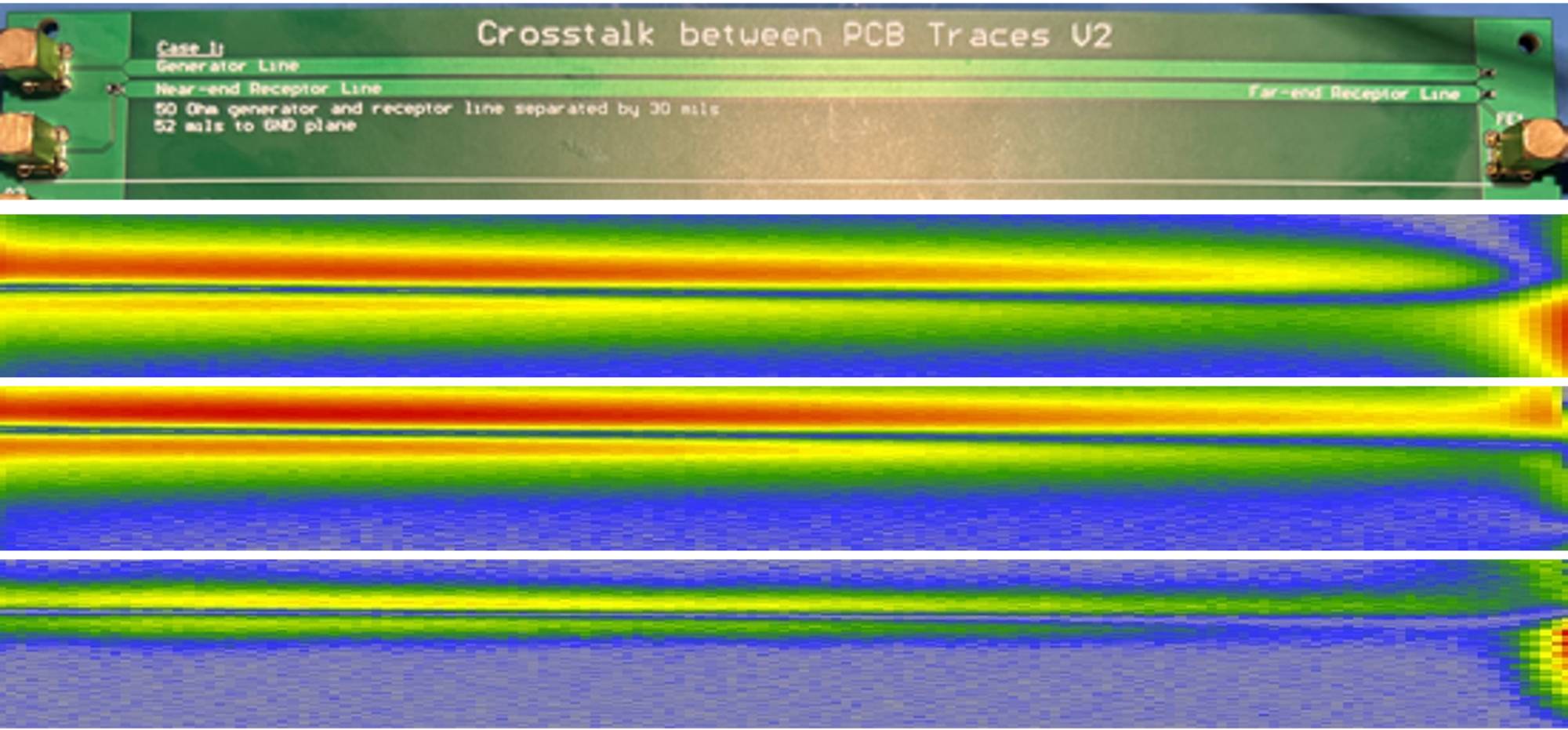

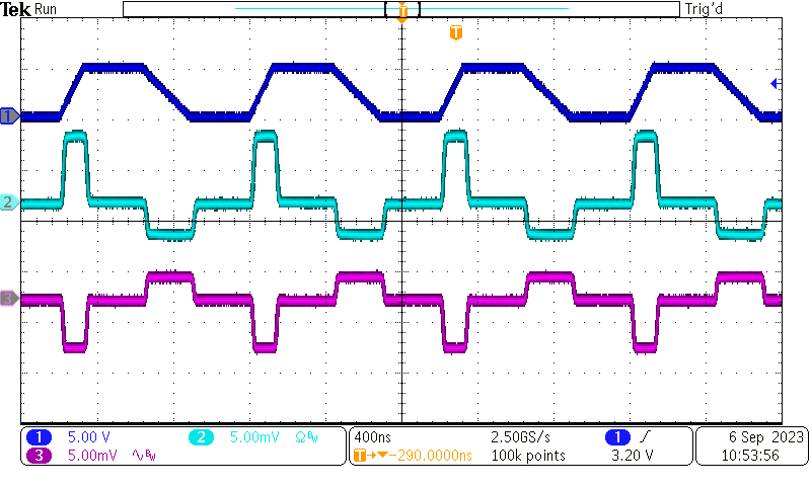

- Measurement – Inductive coupling and crosstalk between PCB traces
Crosstalk and Capacitive Coupling
- Capacitive coupling between circuits
- Impact of the signal parameters, circuit topology, and a guard trace
- Capacitive coupling and crosstalk reduction

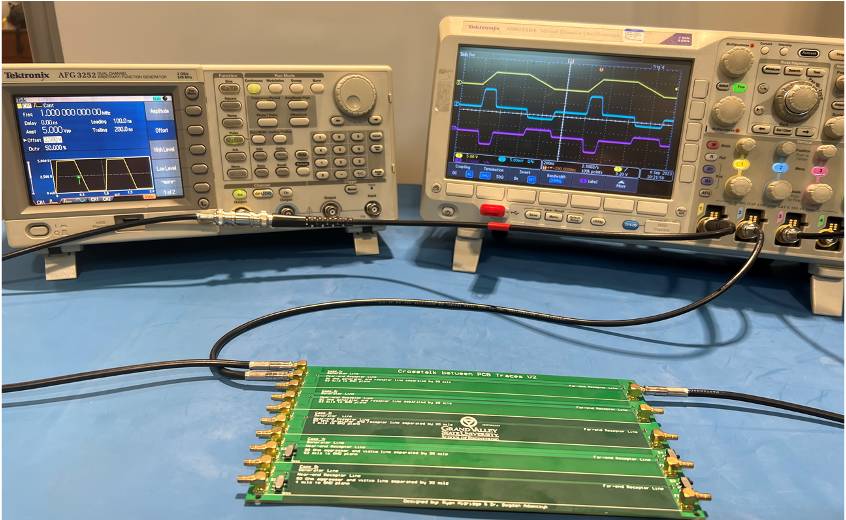

- Measurement – Capacitive coupling and crosstalk between PCB traces
Common-Impedance Coupling
- Common-impedance coupling between circuits
- Impact of the return path impedance and the return current level
- Common-impedance coupling reduction
- Measurement – Impact of return path impedance and current levels on audio and video circuitry
