Friday Morning Session II (10:15 - 11:45 am)
EMC Filters I

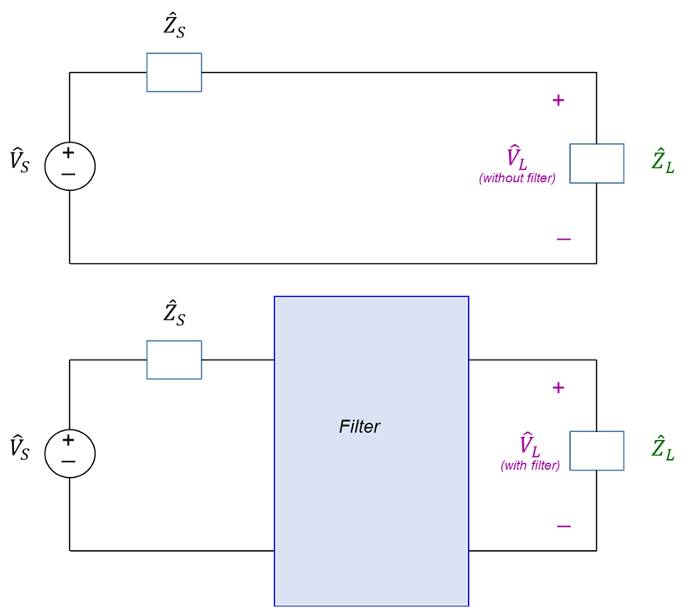

- Insertion loss of a filter
- Single and multistage EMC filters
- Filter characterization with a 50 Ω source and 50 Ω load impedance

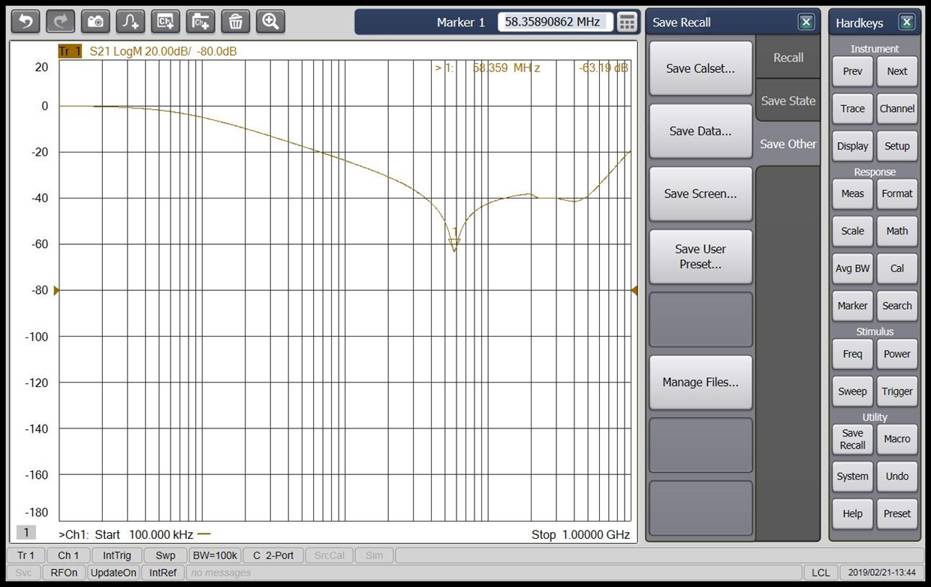

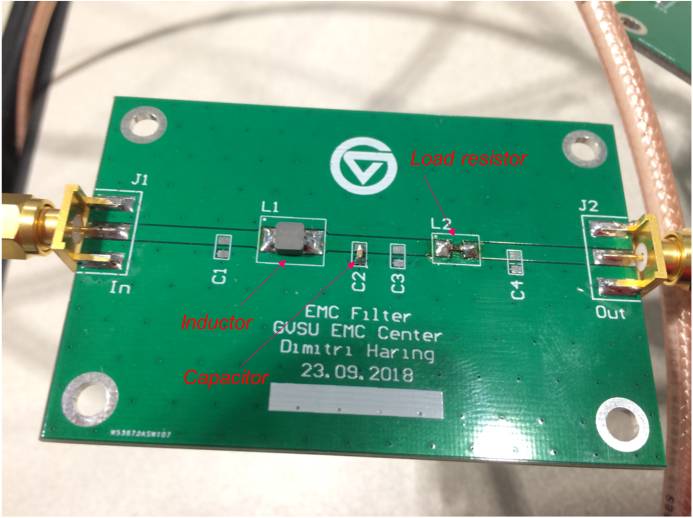

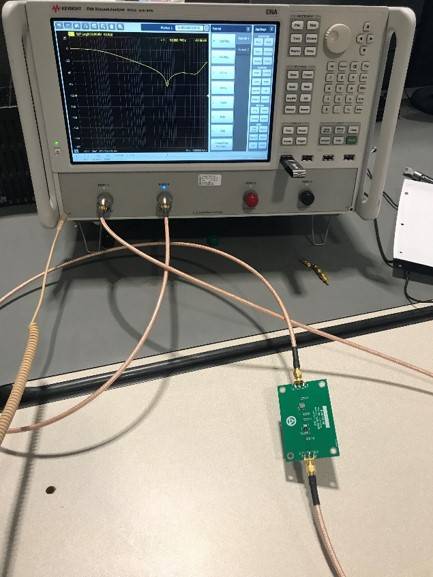

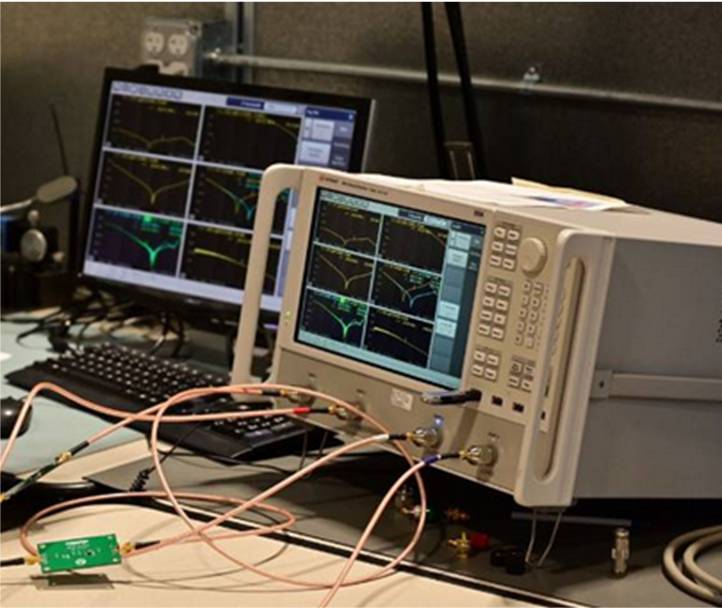

- Measurement - Insertion loss of LC and CL filters
EMC Filters II
- Impact of the source and load impedance on the filter effectiveness
- Filter configurations for a low source and high load impedance
- Filter configurations for a high source and low load impedance

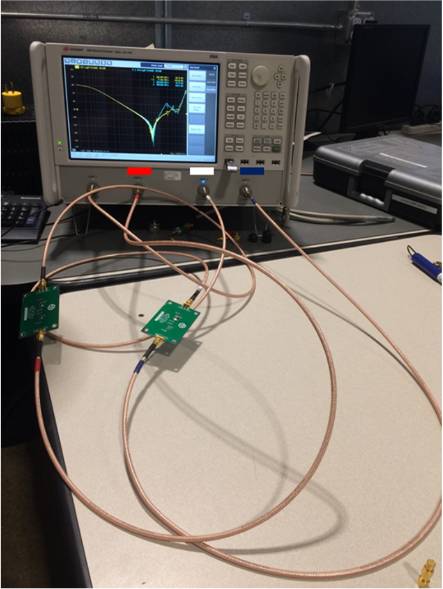

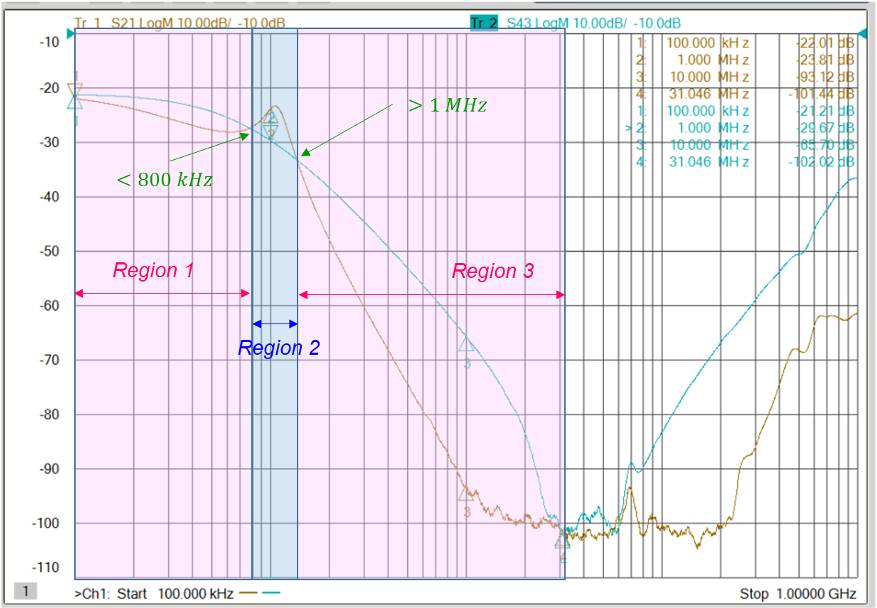

- Measurement - Insertion loss of T and Pi filters
Current Return Path
- Alternative paths of the low- and high-frequency return currents
- Return path discontinuities and radiation
- Split power/ground planes, slots in power/ground planes

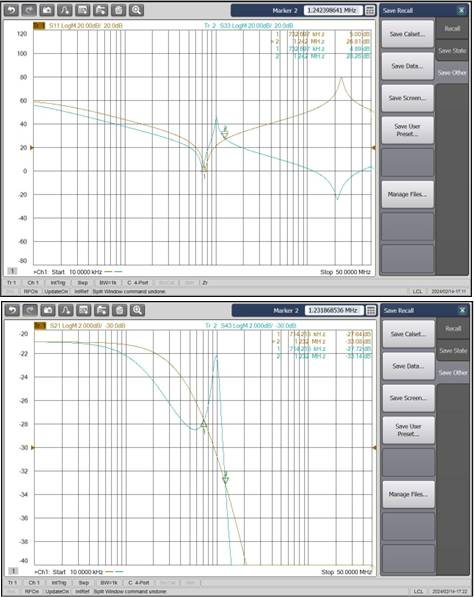

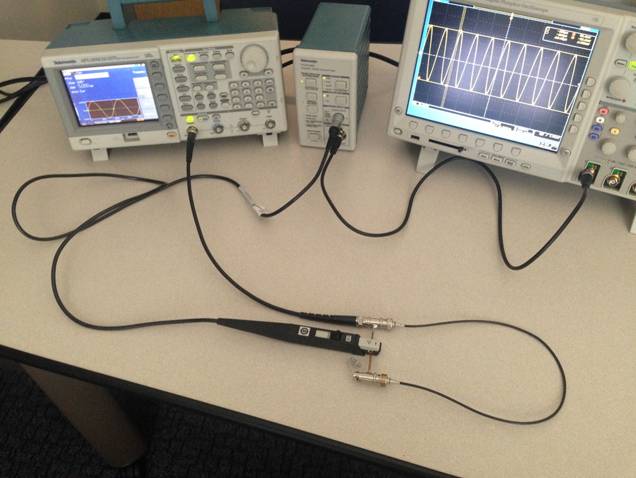

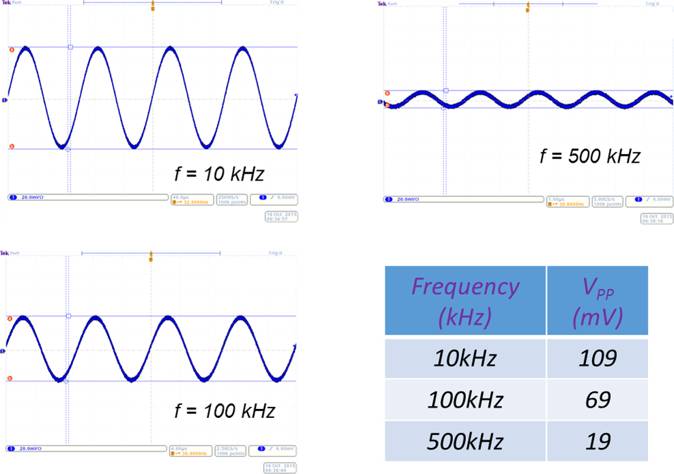

- Measurement - Return current and impact of discontinuities
